Server Architecture

Understand how the IBM i MCP Server transforms SQL queries into AI-accessible tools and integrates with IBM i systems.

The IBM i MCP Server transforms your existing SQL interface into AI-accessible tools using a standardized protocol. Instead of building new APIs or data pipelines, this server exposes IBM i’s rich database services directly to AI agents through the SQL interface you already use.

Core Innovation: IBM i already has powerful SQL services (QSYS2, Db2 for i, stored procedures). The MCP server doesn’t replace these—it makes them accessible to AI agents through a standardized protocol. No new infrastructure, no data duplication, just a bridge between AI and your existing IBM i capabilities.

Key Benefits:

• ✅ Zero New Infrastructure: Uses IBM i’s existing SQL interface—no middleware, no ETL
• ✅ Standardized Protocol: MCP is universal—works with Claude, VSCode, Cursor, and 10+ AI clients
• ✅ IBM i Native: Leverages QSYS2 services, Db2 optimization, and existing security model
• ✅ Data Stays Put: AI queries run against live data—no copies, no sync, no staleness

---

The Architecture in One Picture

What's New

MCP Server (middle layer) and YAML tool definitions

This is the only new infrastructure you deploy

What's Reused

Everything else: SQL interface, Db2, QSYS2, security, stored procedures

All your existing IBM i capabilities

---

What is an MCP Server?

An MCP (Model Context Protocol) server is a standardized interface that connects AI agents to external systems. Instead of building custom integrations for each AI platform, MCP provides a universal protocol that works across Claude, VSCode, Cursor, and other AI tools.

The MCP server handles four responsibilities:

1. Tool Registration - Advertises available operations to AI agents
2. Request Validation - Ensures parameters are correct and safe
3. Execution - Runs operations against your systems
4. Response Formatting - Returns structured results AI agents understand

Think of it as translating between “AI language” (tool calls, structured data) and “IBM i language” (SQL queries, result sets).

---

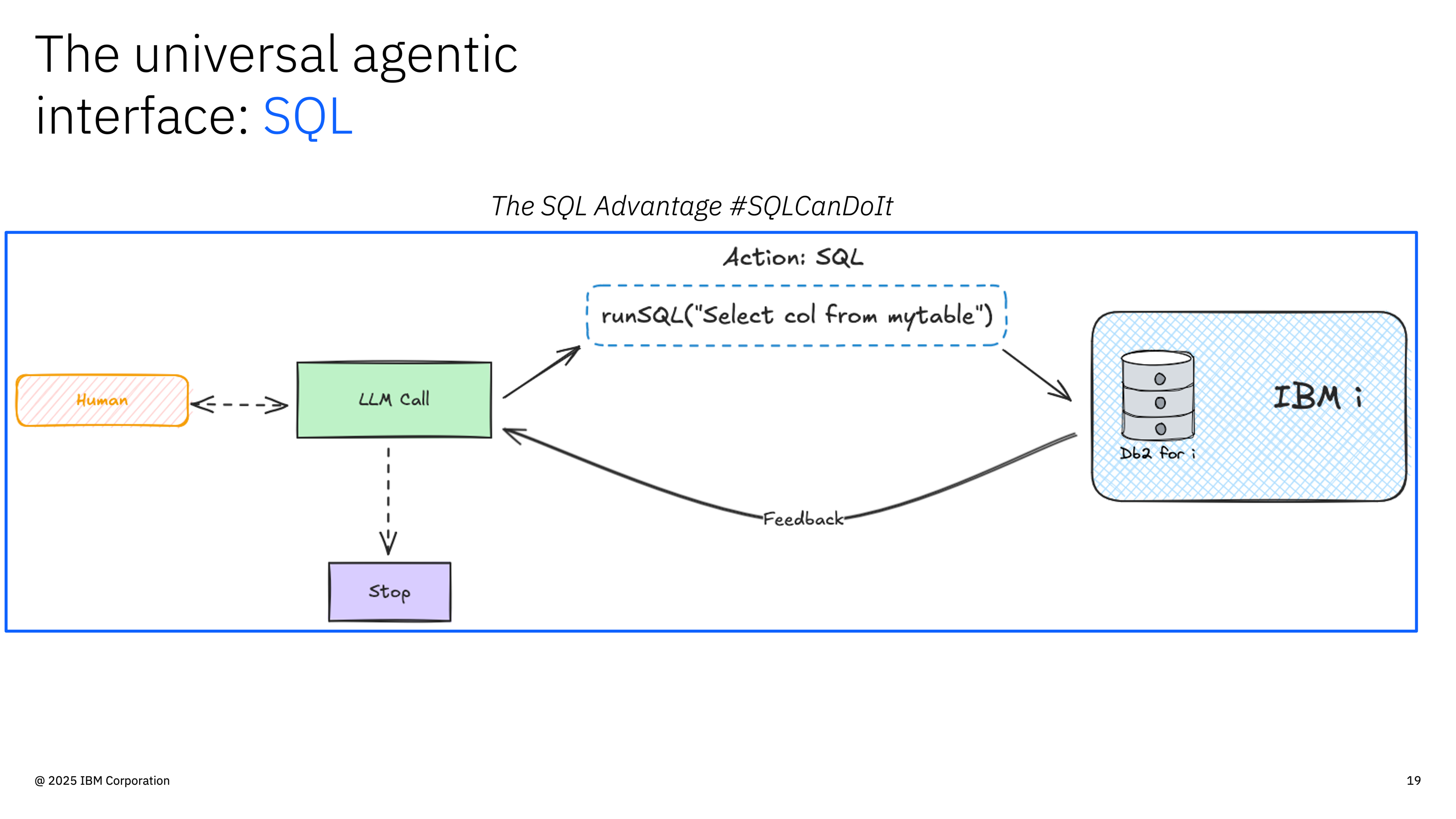

SQL as MCP Tools: Exposing IBM i’s Existing Capabilities

The key insight: IBM i already has everything AI agents need—DB2 for i, QSYS2 system services, performance views, security tables. The MCP server simply makes these existing SQL interfaces accessible to AI through standardized tool definitions.

Why SQL is Perfect for IBM i AI Tools

IBM i’s SQL interface is uniquely powerful because it provides:

QSYS2 System Services

Already on your system: 500+ views and functions for monitoring jobs, performance, security, and system health—no installation required

Db2 for i Optimization

Production-ready performance: Query optimizer, connection pooling, result caching all work out of the box

Native Security Model

Built-in authority checking: Object-level permissions, special authorities, and audit trails just work

Stored Procedures

Existing business logic: Call RPG, COBOL, or CL programs through SQL—no rewrites needed

The MCP server’s job: Turn these SQL capabilities into discoverable tools that AI agents can use.

You’re not building new infrastructure—you’re exposing what’s already there. A SQL query that checks system status becomes a tool AI agents can discover and call. No REST endpoints to maintain, no data to sync, no middleware to deploy.

Example: Exposing QSYS2 Services to AI

Let’s see how an existing IBM i service becomes an AI tool. No new infrastructure—just a YAML definition that exposes what’s already there.

Step 1: The SQL Service (Already Exists on IBM i)

-- QSYS2.ACTIVE_JOB_INFO is a built-in IBM i service
-- It's already running, already optimized, already secured
SELECT job_name, cpu_time
FROM table(qsys2.active_job_info())
order by cpu_time desc
fetch first 10 rows only;

Step 2: Make It an MCP Tool (YAML Definition)

# tools/system-monitoring.yaml
tools:
  get_active_jobs:
    source: ibmi-system
    description: "List currently active jobs with CPU usage from QSYS2.ACTIVE_JOB_INFO"
    parameters:
      - name: limit
        type: integer
        default: 10
        description: "Number of top CPU-consuming jobs to return"
    statement: |
      SELECT job_name, cpu_time
      FROM table(qsys2.active_job_info())
      order by cpu_time desc
      fetch first :limit rows only

Step 3: AI Agents Discover It Automatically

When the server starts, it registers this tool. AI agents see:

{
  "name": "get_active_jobs",
  "description": "List currently active jobs with CPU usage from QSYS2.ACTIVE_JOB_INFO",
  "inputSchema": {
    "type": "object",
    "properties": {
      "limit": {
        "type": "integer",
        "description": "Number of top CPU-consuming jobs to return",
        "default": 10
      }
    },
    "required": []
  }
}

Step 4: AI Agents Use It Naturally

User: "Show me the top 5 CPU-consuming jobs"

AI Agent: [Calls get_active_jobs tool with limit=5]

Result:
{
  "rows": [
    {
      "job_name": "QZDASOINIT",
      "cpu_time": 45231
    },
    {
      "job_name": "QSYSARB",
      "cpu_time": 12450
    },
    {
      "job_name": "QPADEV0001",
      "cpu_time": 8932
    },
    {
      "job_name": "QTCPIP",
      "cpu_time": 5621
    },
    {
      "job_name": "QDBSRV01",
      "cpu_time": 3489
    }
  ],
  "rowCount": 5
}

AI: "The top CPU-consuming jobs are QZDASOINIT (45,231ms), QSYSARB (12,450ms), and QPADEV0001 (8,932ms)..."

What just happened: You exposed an existing IBM i service (QSYS2.ACTIVE_JOB_INFO) to AI agents using a simple YAML file. The SQL service was already there, already secured, already optimized. The MCP server just made it discoverable and callable through a standardized protocol.

---

How Requests Flow Through the Server

Understanding the request flow helps explain how SQL tools maintain security while providing flexibility:

Step-by-Step Flow

1. Tool Request

   AI agent identifies a need (e.g., “show me active jobs”) and calls the get_active_jobs tool

2. Parameter Validation

   Server validates all parameters against defined constraints (type, range, pattern, etc.)

3. SQL Security

   Parameters are safely bound to SQL using prepared statements—SQL injection is impossible

4. Database Execution

   SQL executes against Db2 for i using authenticated user’s authorities

5. Result Formatting

   Results formatted as markdown tables and structured JSON for AI consumption

Parameter Binding Security: Parameter binding is the key security feature. Instead of concatenating user input into SQL strings (dangerous), parameters are bound separately by the database driver. The SQL structure cannot be modified, preventing injection attacks entirely.

---

Server Components

The server is organized into clear functional areas:

1. Tool Registry

What it does: Manages all available tools and their schemas

Two types of tools:

• SQL Tools (YAML-defined) - IBM i database operations
• TypeScript Tools (code-based) - Custom logic and external integrations

Tool discovery:

# AI agents can list all available tools
GET /mcp/tools/list

# Response includes tool names, descriptions, and schemas
{
  "tools": [
    {"name": "get_active_jobs", "description": "List currently active jobs..."},
    {"name": "system_status", "description": "Get system performance metrics..."}
  ]
}

2. YAML Tool Engine

What it does: Converts YAML configurations into executable SQL tools

Process:

1. Load YAML files from configured directories
2. Parse tool definitions and parameter schemas
3. Generate validation logic from parameter constraints
4. Register tools with the MCP server
5. Execute SQL safely when tools are called

Configuration flexibility:

# Load specific YAML file
npx -y @ibm/ibmi-mcp-server@latest --tools tools/my-tools.yaml

# Load entire directory
npx -y @ibm/ibmi-mcp-server@latest --tools tools/

# Load specific toolsets only
npx -y @ibm/ibmi-mcp-server@latest --tools tools/ --toolsets performance,security

3. Connection Management

What it does: Maintains secure, efficient database connections

Features:

• Connection pooling for performance
• Automatic reconnection on failures
• Per-user connection isolation (HTTP auth mode)
• Credential encryption (IBM i auth)

Two authentication modes:

Shared Connection (STDIO)

Best for: Development, CLI tools, single-user scenarios

# All operations use same Db2i user
DB2i_HOST=ibmi-system.com
DB2i_USER=MCPUSER
DB2i_PASS=password

Per-User Connection (HTTP)

Best for: Production, web apps, multi-user scenarios

# Each user authenticates individually
MCP_AUTH_MODE=ibmi
IBMI_HTTP_AUTH_ENABLED=true

# User JSMITH → Connects as JSMITH to Db2i
# User AADAMS → Connects as AADAMS to Db2i

4. Transport Layer

What it does: Handles communication between AI agents and the server

Two transport modes:

Transport	Use Case	Protocol	Port
STDIO	Development, CLI tools	stdin/stdout	N/A
HTTP	Production, web apps	HTTP/SSE	3010

STDIO is simpler (direct process communication), while HTTP enables remote access, load balancing, and web integration.

---

Next Steps

Build SQL Tools

Create your first YAML SQL tool in minutes

Complete Example

Study the comprehensive employee-info.yaml example

Client Integration

Connect Claude, VSCode, or other MCP clients

Configuration

Review all available environment variables

Architecture Philosophy: Leverage what exists. IBM i’s SQL interface, QSYS2 services, and Db2 optimization are production-proven. Rather than building new infrastructure, this server exposes these existing capabilities to AI agents through a standardized protocol. You write YAML definitions for SQL you already know—the server handles discovery, validation, and formatting for AI consumption.
